• More Elaborate Performance! The pixel pitch of this indoor module is only (8mm), smooths the image on screen and shows more details. (8scans) per seconds, provides great dynamic expression.
• Bright and Even for Long Usage! This display screen provides brightness of (4500 Nits) and could be automatically adjust according to the changes in surrounding. Less lumen depreciation than LCD and DLP display, guarantee the even performance in long time usage!
• Vivid Visual Experience! Bigger view angel(160°-170°) with digital RGB chip could provide a great visual of color, plus its scanning rate of 1/8, could almost bring you the real scenery.
• A Whole Screen! This module could be seamless spliced, not like LCD or DLP display. It looks like an whole screen but LCD or DLP display have terrible black cracks on screen.
• DIY with Widely Usage: It has so many combinations to fit your situation. [Tips for Customers: Need the cooperation of receiving card, sending card, software and DC 5V power supply to work. Make sure you know about this product and the parts before you buy it.] If you have your plan of display, please feel free to contact us!

Parameter
Pixel Pitch: 8mm

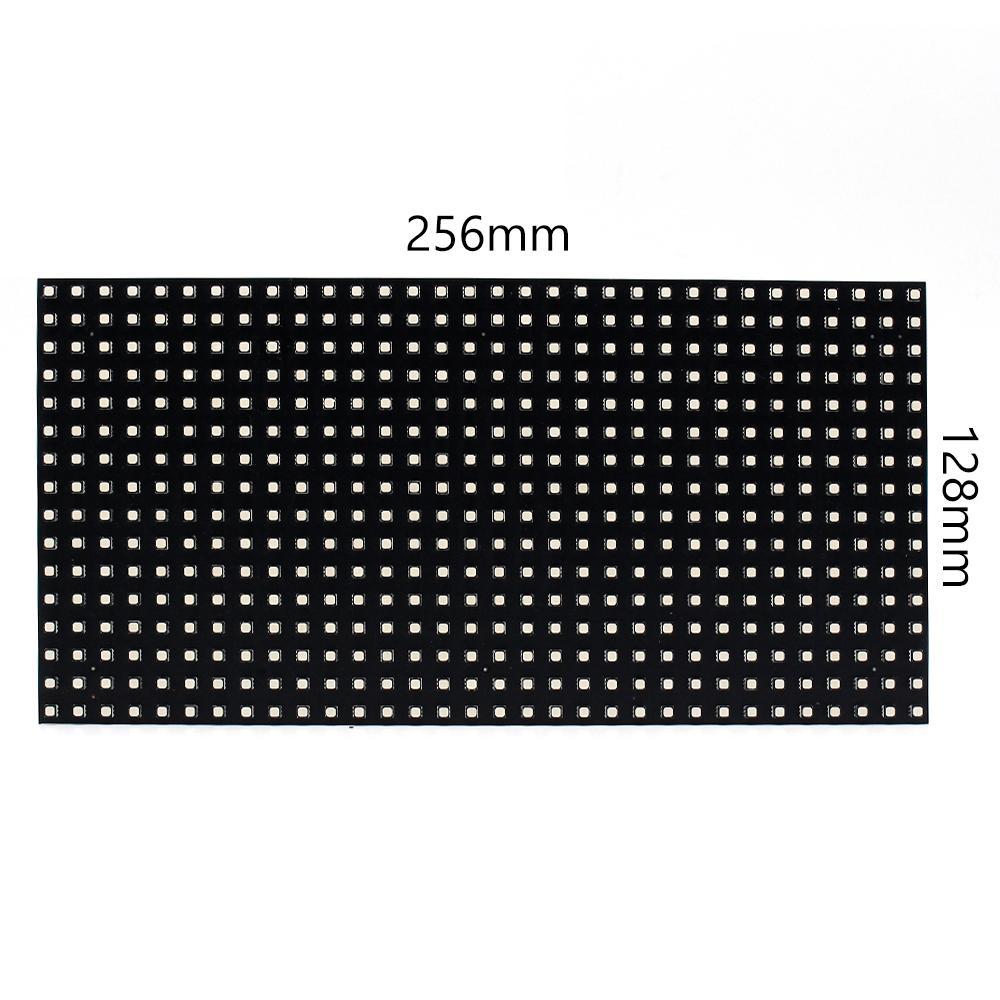

Module Size: 256*128mm
Module Resolution: 32*16
Module Pixles: 512dots
Scan: 1/8
Pixel Density :15625dots/㎡
Viewing Distance: >8m

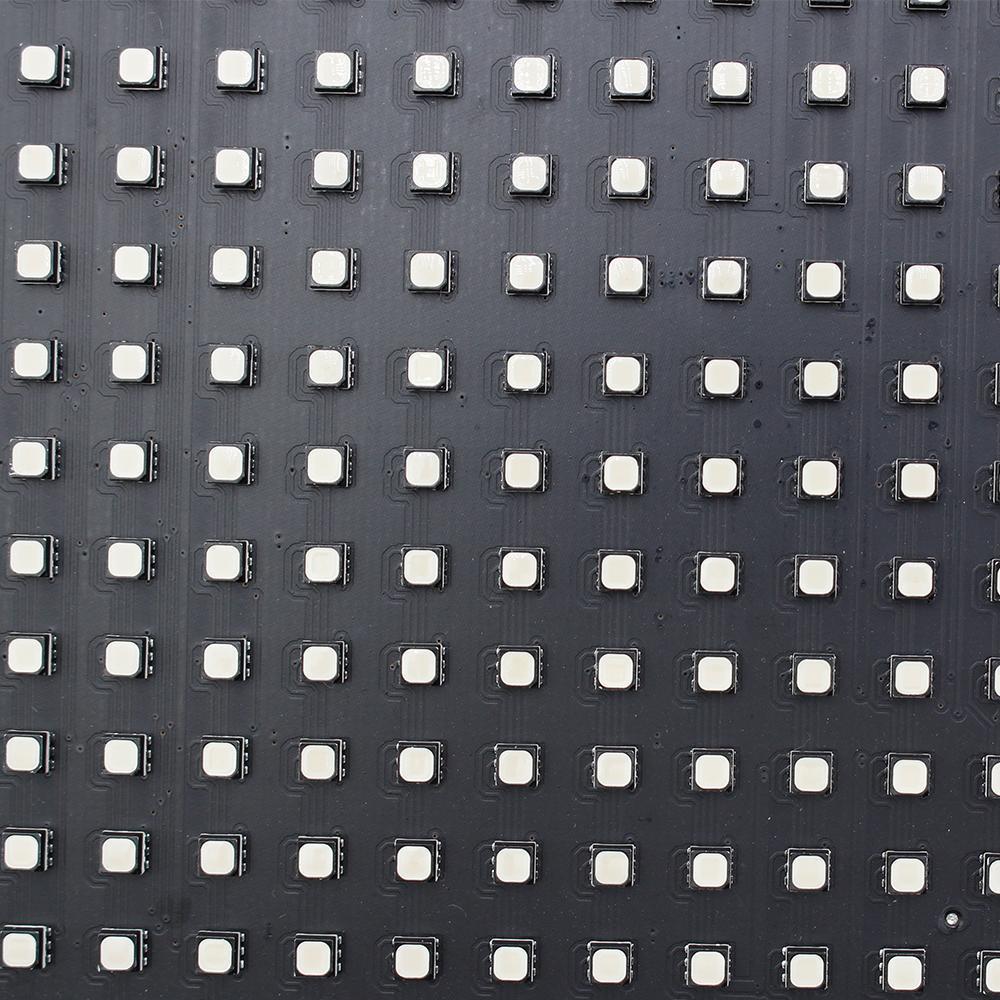

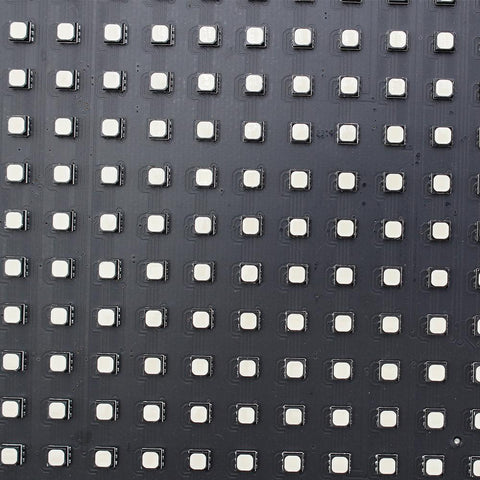

LED: SMD3535
Pixel Configuration: 1R 1G 1B
Brightness: ≥4500 Nits
Contrast Rate : 3000:1
Color Depth: 16bit
Grey Level: 16384
Refresh Frequency: >3840HZ
Driving IC: MBI/ICN
Color Uniformity : ≥97%
Protection Rating: IP30
Life span: ≥100,000 hours
Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity: 10％ ～ 90％
Voltage: 5V
Viewing Angle: H:160deg. V:160deg.
Power Consumption(w) : Max. 20W
Blind Spot Rate: ≤0.0003


Included

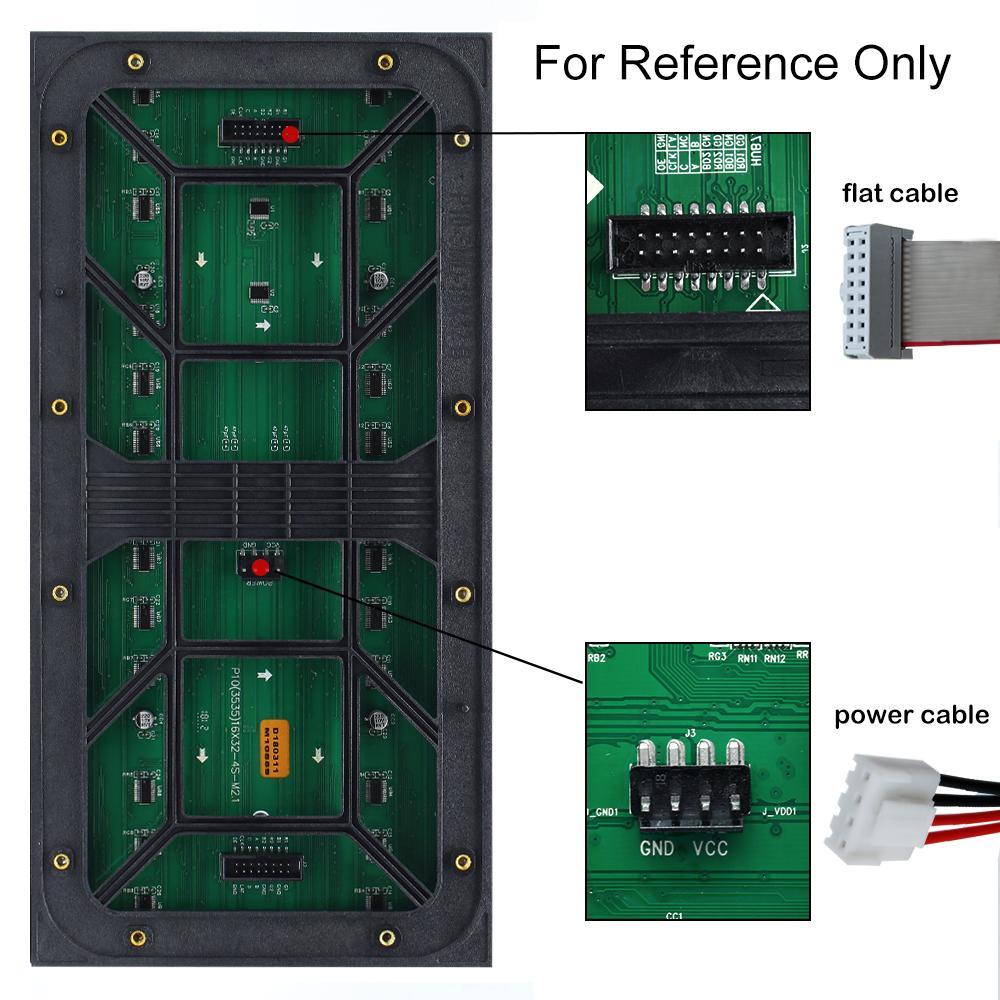

1 * Power Cable
1 * Data Cable

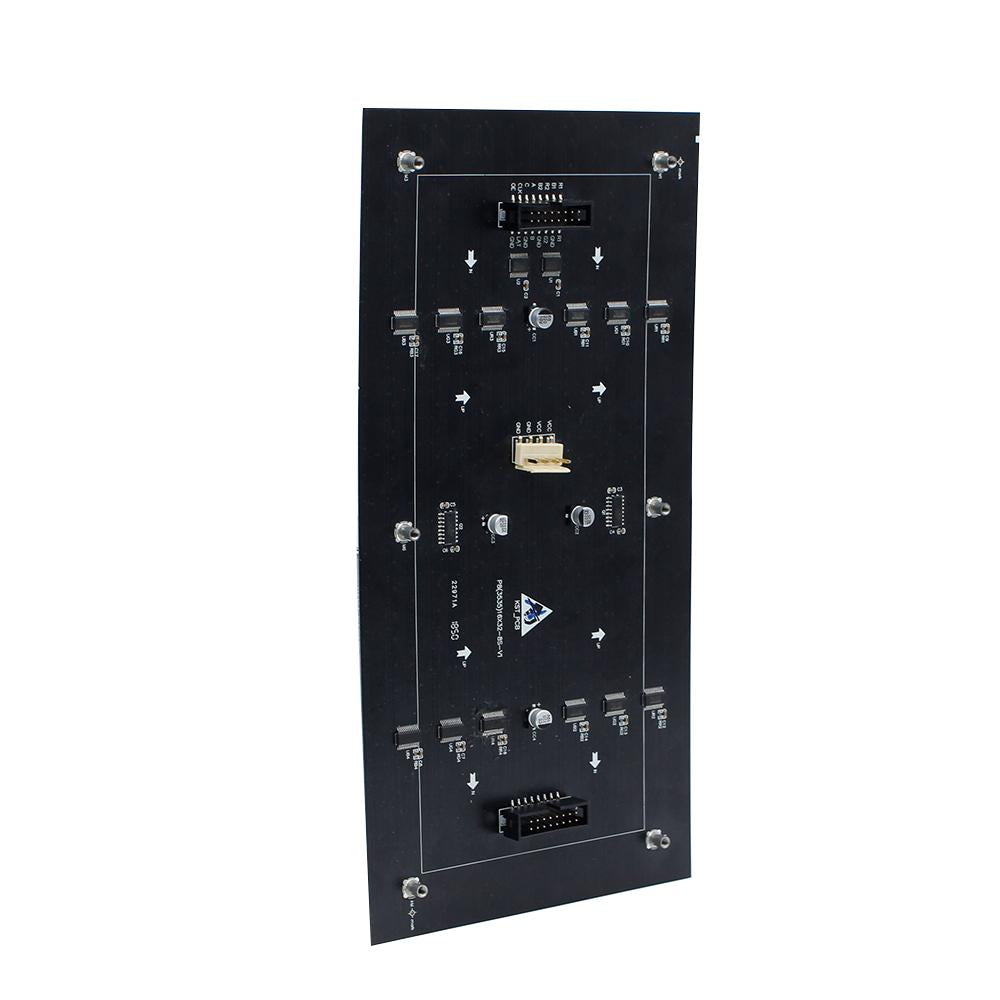

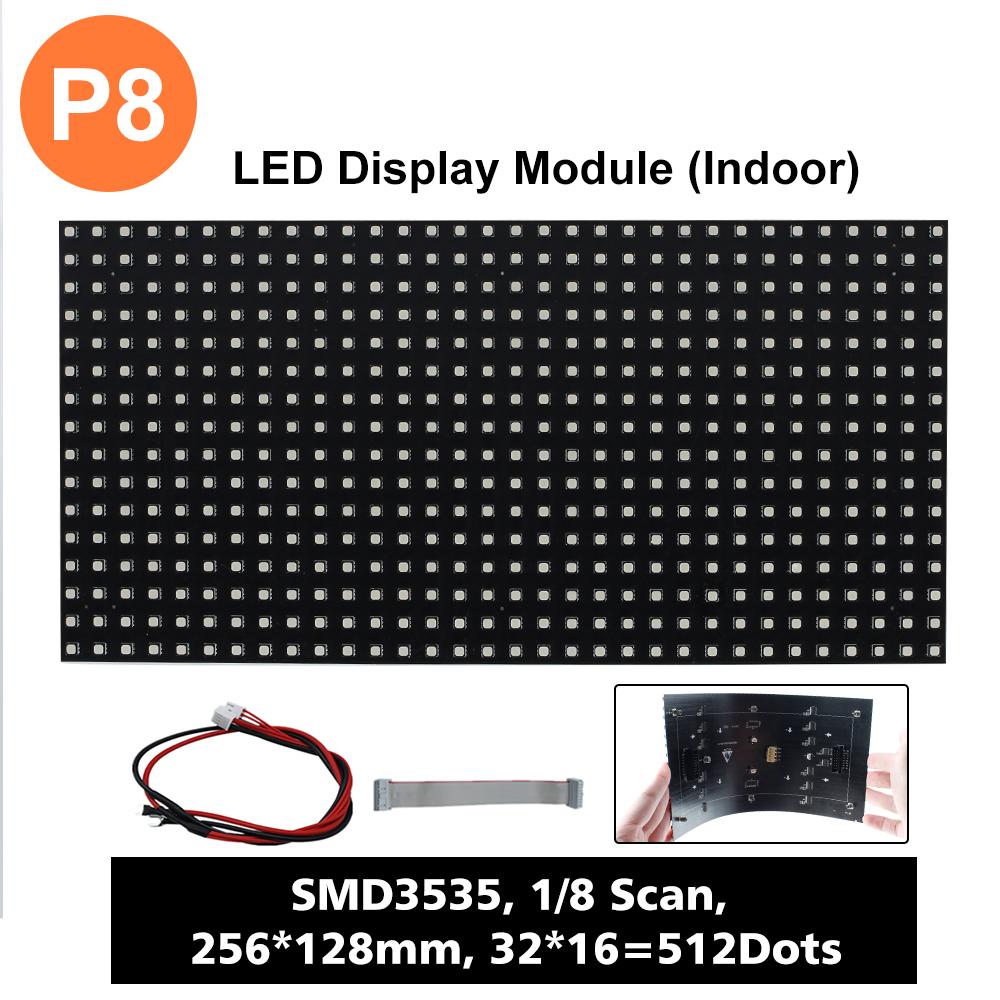

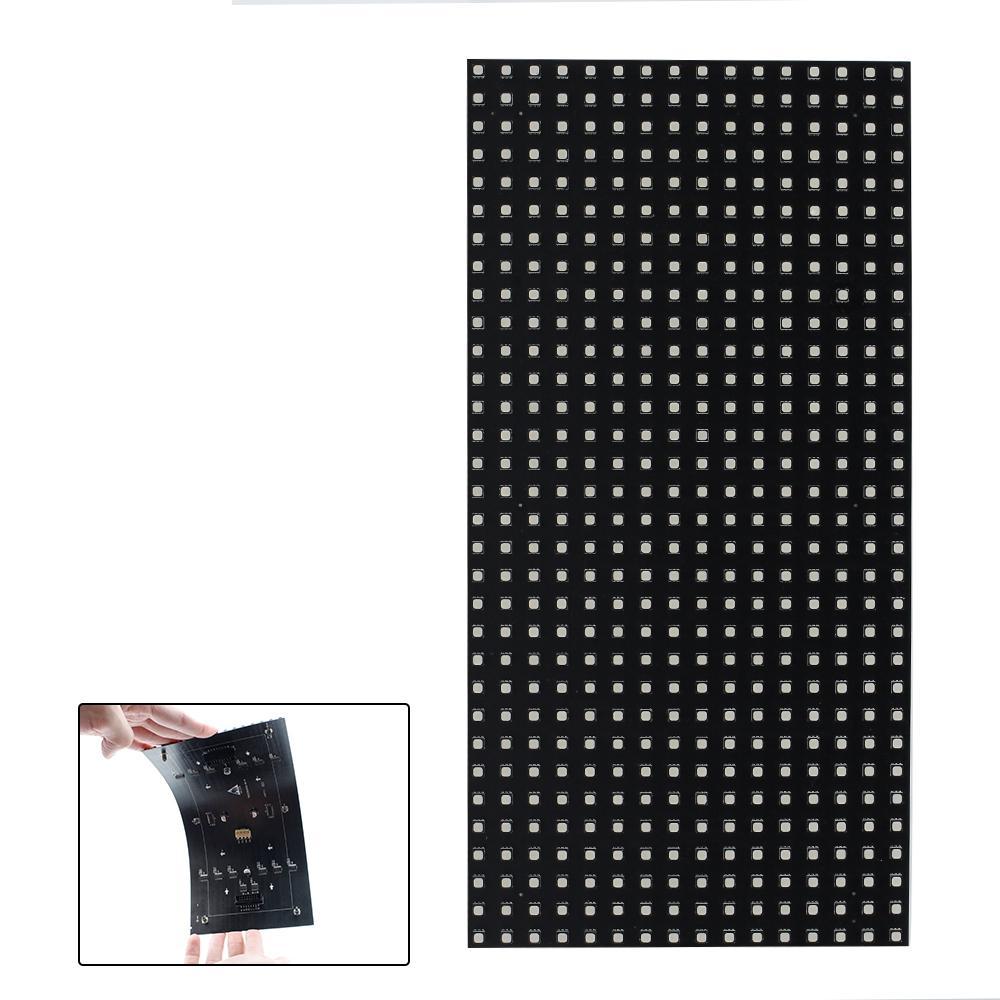

1 * P8 256*128mm RGB full color LED display module
