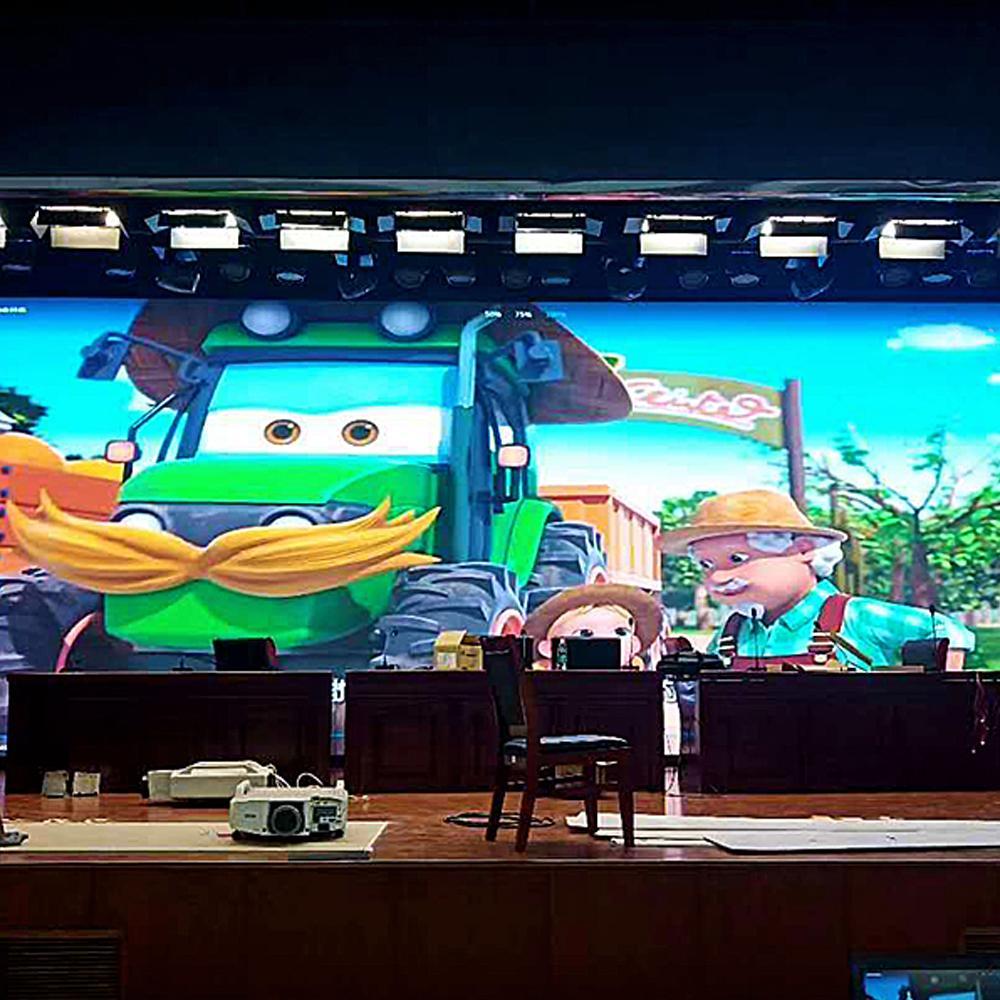

  • Image of iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet
  • Image of iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet
  • Image of iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet
  • Image of iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet
  • Image of iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet
  • Image of iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet
  • Image of iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet

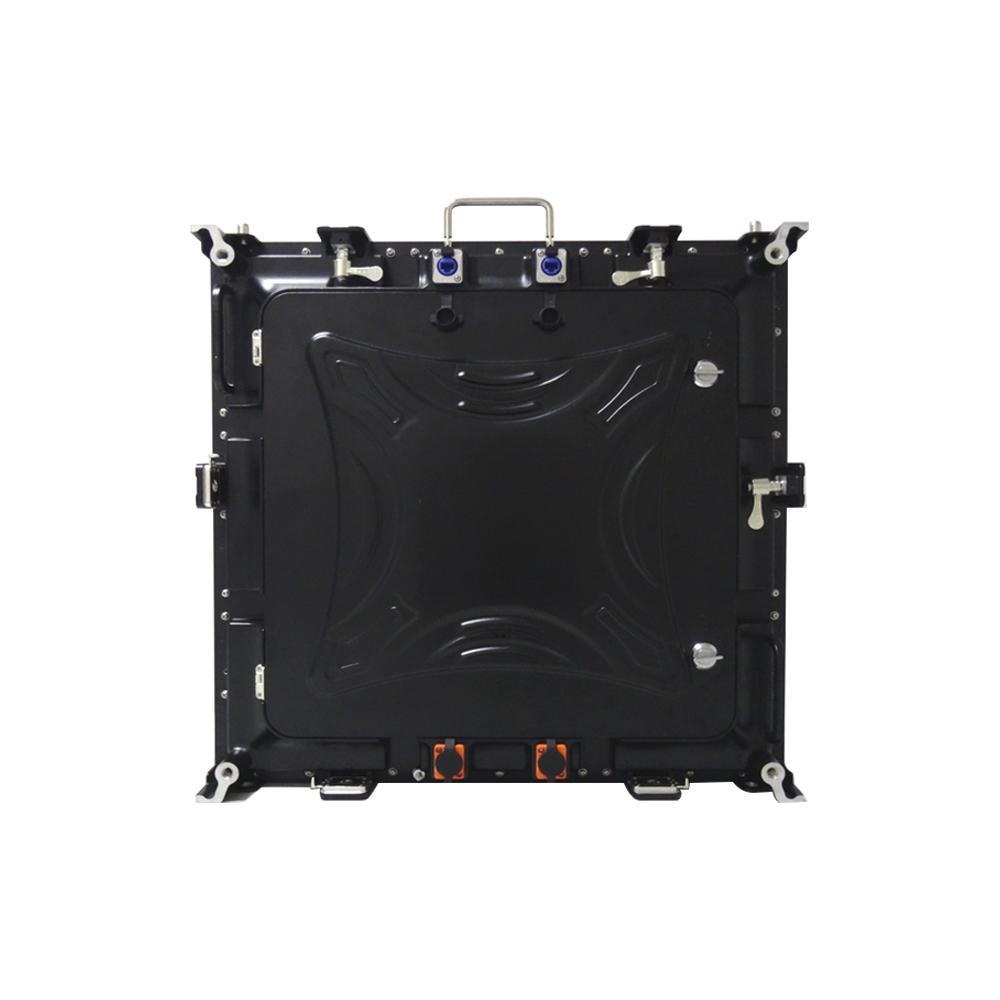

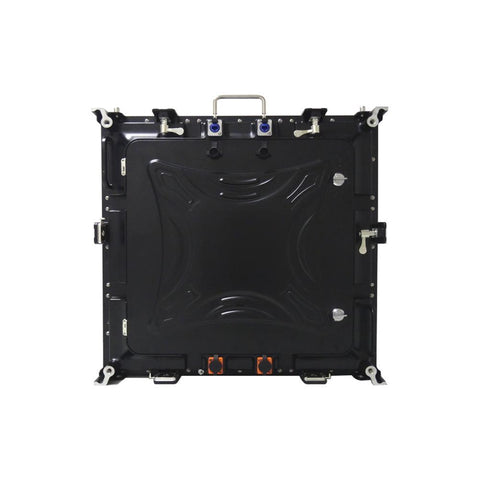

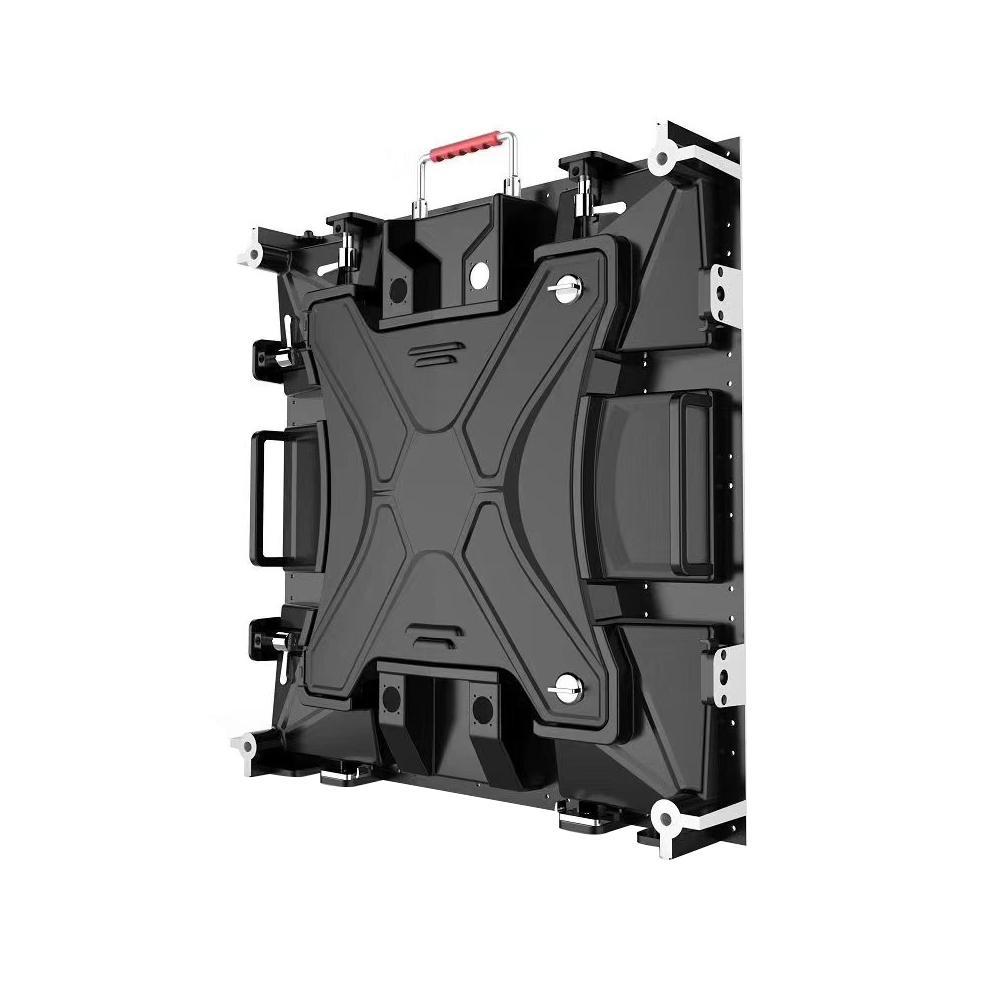

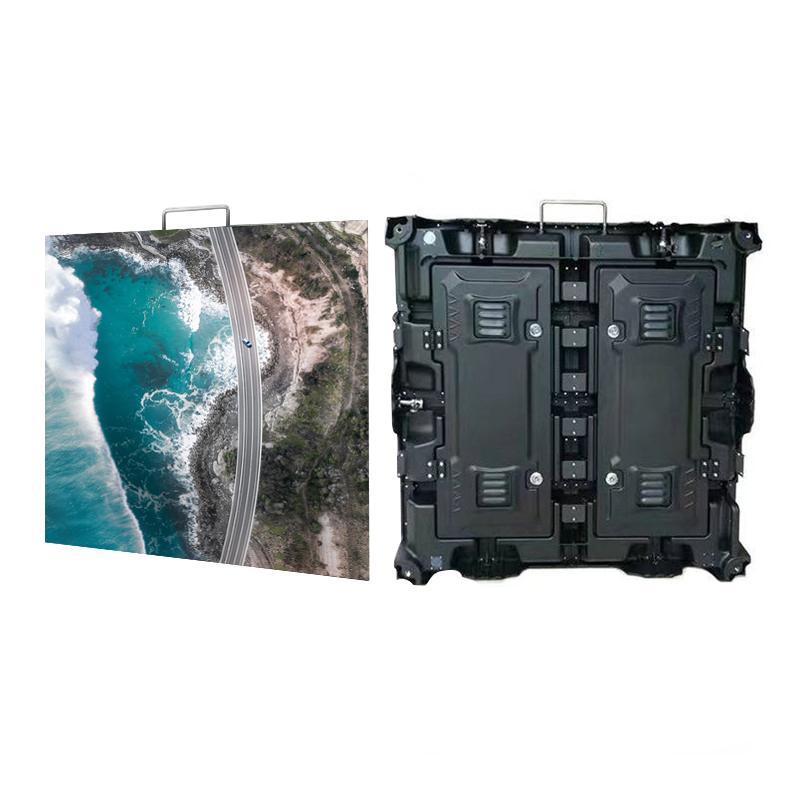

iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet


I agree to subscribe to updates from ledlightingnet.com - Privacy Policy

$0.00
iF-A3
Quantity

Checkout Secure

iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet

$0.00
+ Add To Cart
+ Buy Now
Order in the next  to get it by

5 Great reasons to buy from us:

  • Image of Secure Ordering
    Secure Ordering
  • Image of 30-Day Money-Back Guarantee
    30-Day Money-Back Guarantee
  • Image of 100% Satisfaction Guaranteed
    100% Satisfaction Guaranteed
  • Image of Easy Returns
    Easy Returns
  • Image of Free shipping (Order over $199)
    Free shipping (Order over $199)

Description

iF-A Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 mm Die-Casting Aluminum Cabinet


Specifications

Part No. iF-A3 iF-A4 iF-A5
Pixel Pitch 3mm 4mm 5mm
LED SMD2121
LED Brand Standard: Kinglight/Huatian etc.Premium:Nationstar
Pixel Configuration 1R 1G 1B
Wave Length R:620~625nm, G:520~530nm, B:460~475nm
Module Size 192*192mm 320*160mm 320*160mm
Module Resolution 64*64 80*40 64*32
Module Pixles 4096dots 3200dots 2048dots
Scan 1/32 1/20 1/16
Cabinet Size 768*768*70mm 640*640*70mm 640*640*70mm
Module Qty./Cabinet 16 8 8
Cabinet Qty./㎡ 1.7 2.44 2.44
Cabinet Resolution 256*256 160*160 160*160
Cabinet Pixles 65536dots 25600dots 16384dots
Cabinet Type Die-casting Aluminum
Pixel Density 105688dots/㎡ 62500dots/㎡ 40000dots/㎡
Brightness ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡
Contrast Rate 3000:1 3000:1 3000:1
Color Depth 16bit 16bit 16bit
Grey Level 16384 16384 16384
Refresh Frequency >1920HZ >1920HZ >1920HZ
Driving IC MBI/ICN MBI/ICN MBI/ICN
Color Uniformity ≥97% ≥97% ≥97%
Protection Rating IP30 IP30 IP30
Operating Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity 10％～90％
Input voltage AC100-240V AC100-240V AC100-240V
Power Supply Standard: CE/Premium:UL CE MeanWell
Controlling System Nova Nova Nova
Viewing Distance >3m >4m >5m
Viewing Angle H:140deg.V:140deg.
Power Consumption(w) Max.800W/㎡Avg.400W/㎡
Blind Spot Rate ≤0.0003
Maintainance Rear/Front



Features

* Indoor LED Display
* High Quality Aluminum Alloy with Good Dissipation
* Brightness > 800nits, Rated for Indoor LED Display Screen Projects
* Die-casting Aluminum Cabinet, Allow for Seamless Combination of Large LED Screen
* Silent Design with Fanless Cabinet, the Whole LED Display Works without Making any Noise.

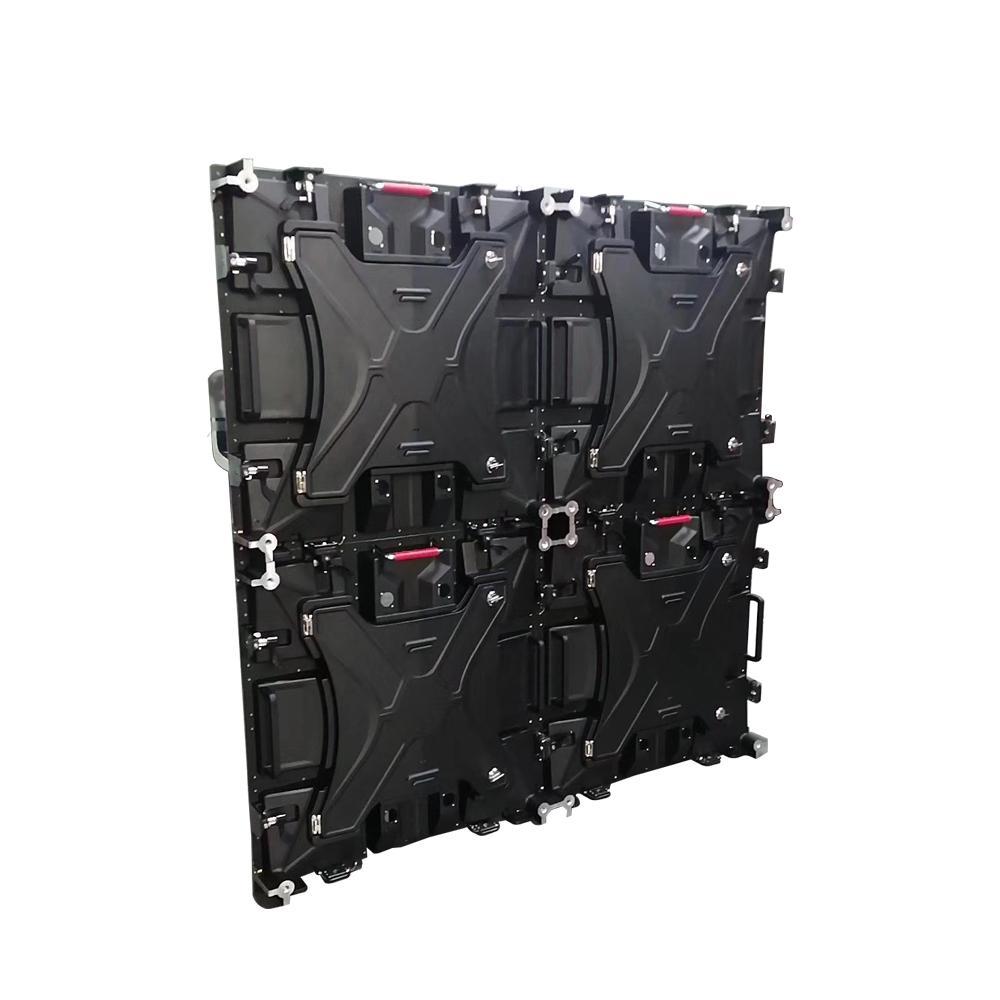

* With fast lock each LED display cabinet, multiples can be spliced together into a Large LED Display soon.
