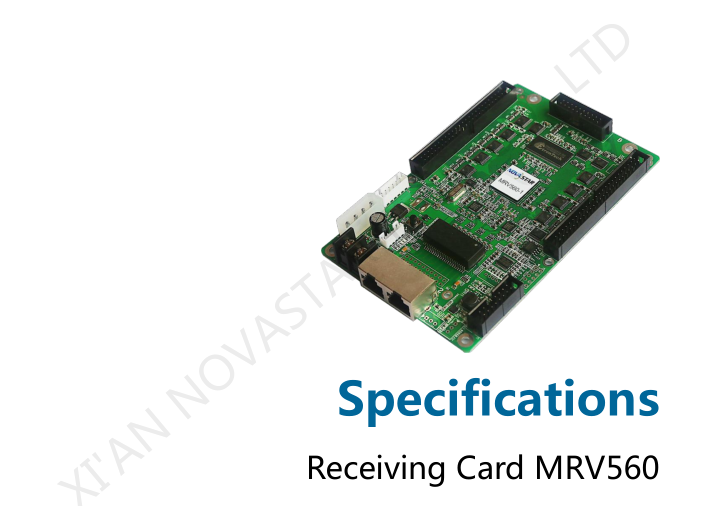

NovaStar MRV560 Series LED Screen Receiving Card
5 Great reasons to buy from us:
-
Secure Ordering -
30-Day Money-Back Guarantee -
100% Satisfaction Guaranteed -
Easy Returns -
Free shipping (Order over $199)
NovaStar MRV560 Series LED Screen Receiving Card
Specifications V1.1.2
Firmware V4.6.0.0
Update Notes V4.6.0.0
Description
1) Single card outputs 16-group of RGBR ‘data;
2) Single card outputs 20-group of RGB data;
3) Single card outputs 64-group of serial data;
4) MOM can store calibration coefficient and LED module information;
5) Single card supports resolution of 256×226;
6) Configuration file readback;
7) Temperature monitoring；
8) Ethernet cable communication status detection;
9) Power supply voltage detection;
10) High gray scale and high refresh rate;
11) Pixel-by-pixel brightness and chromaticity calibration.
12) Brightness and chromaticity calibration coefficients for each LED;
13) Pre-store picture setting;
14) Able to connect monitoring card to achieve comprehensive monitoring;
15) Comply with RoHS standard;
16) Comply with EU CE-EMC Class B standard.
| Product Model | MRV210 | MRV220 | MRV300 | MRV328 | MRV366 | MRV560 |
| Resolution(PWM IC) | 256x226 | 256x226 | 256x226 | 256x256 | 512x256 | 256x226 |
| RGB Parallel Data Group | 24/20 | 24/28 | 20 | 16 | 32 | 20 |
| RGBR’ Data Group | 16 | 16 | 16 | |||
| Serial Data Group | 64 | 64 | 64 | |||
| Configuration file read back | √ | √ | √ | √ | ||
| Temperature monitoring | √ | √ | √ | √ | ||
| Ethernet cable communication status detection | √ | √ | √ | √ | ||
| Power supply voltage detection | √ | √ | √ | √ | ||
| High gray-scale, high-refresh-rate, and high and low brightness mode refresh |
√ | √ | √ | √ | ||
| Pixel-by-pixel brightness and chromaticity calibration and brightness and chromaticity calibration coefficients for each LED |
√ | √ | √ | √ | ||
| Comply with EU RoHs standard | √ | √ | √ | √ | √ | √ |
| Comply with EU CE-EMC standard | √ | √ | √ | √ |
Estimated between and
Will usually ship within 1 business day.NovaStar MRV560 Series LED Screen Receiving Card
