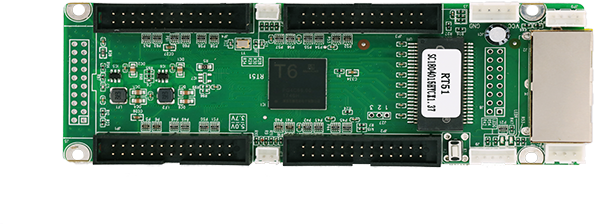

Mooncell Receiving card RT51

Function introduction

RT51 is Moses, general version receiving card, has the following functions:

1.It features 4 x 26 PIN Interfaces ( 2.55mm distance between each one of the PINs)

2.It is upgrading-free and compatible with a variety of driver ICs

3.It supports the pixel-level brightness&chroma calibration and the low grey scale can be compensated

4.Dual receiving cards backup ( Dual Circuits backup), Network Cable Hot Backup(Online Backup), Dual Power Supplies Backup

5.It supports to detect the error rates of the network cable & the serial # of the receiving card

6.It supports to repair the configuration parameters with just one click ( Smart Repair)

7.It supports to have the user-defined data interface(customized)

8.The Images on the led screen can be rotated 90 degree in a factor of multi times and also can be zoomed in & out

9.It supports to read the configuration data back from where it's been stored

10.It is RoHS & CE-EMC compliant

Loading Specs:

1.Parallel Data (RGB): 20 Dataset

2.Parallel Data (RGBR'): 16 Dataset

3.Serial Data: 64 Dataset

4.The maximum loading capac-ity(pixels):256*384

5.The quantity of the receiving cards that it can be cascading connected:≤1000PCS

6.The scanning line supported:1-128 Lines

7.The maximum loading capacity in width/height:4095 pixels
