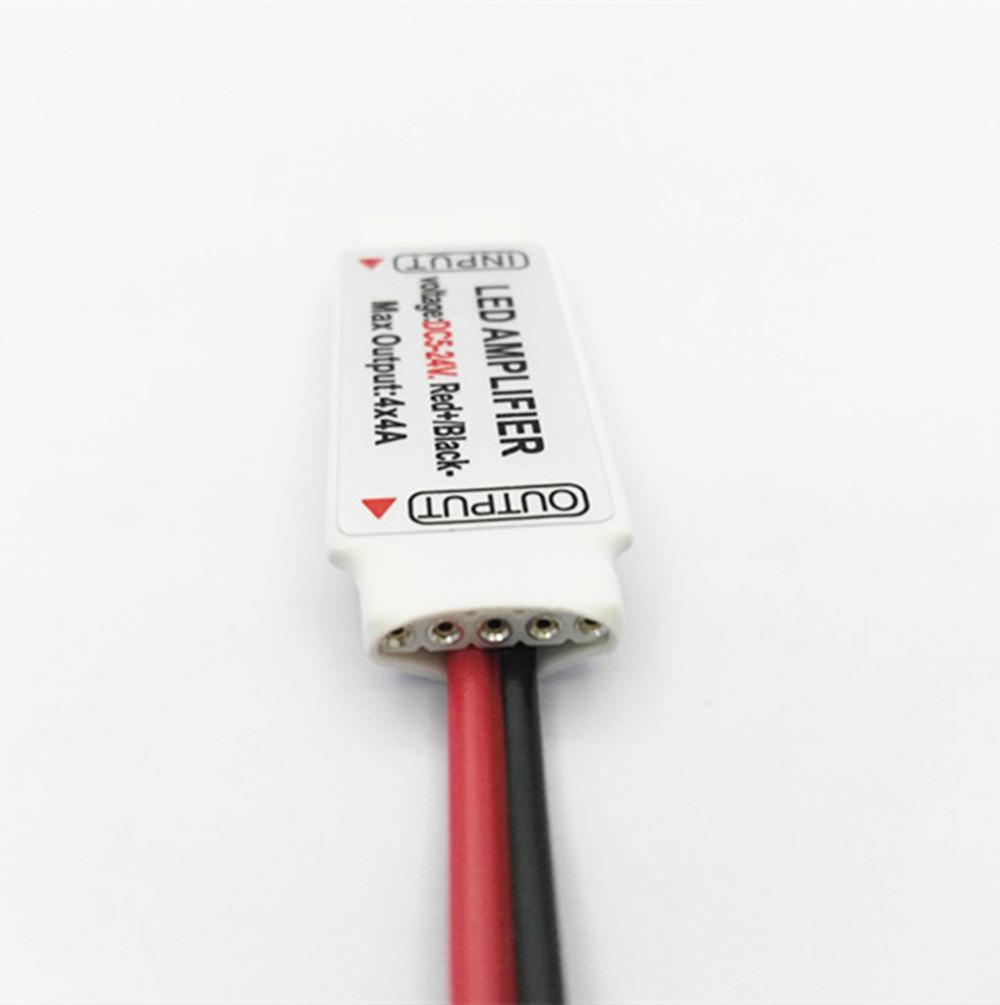

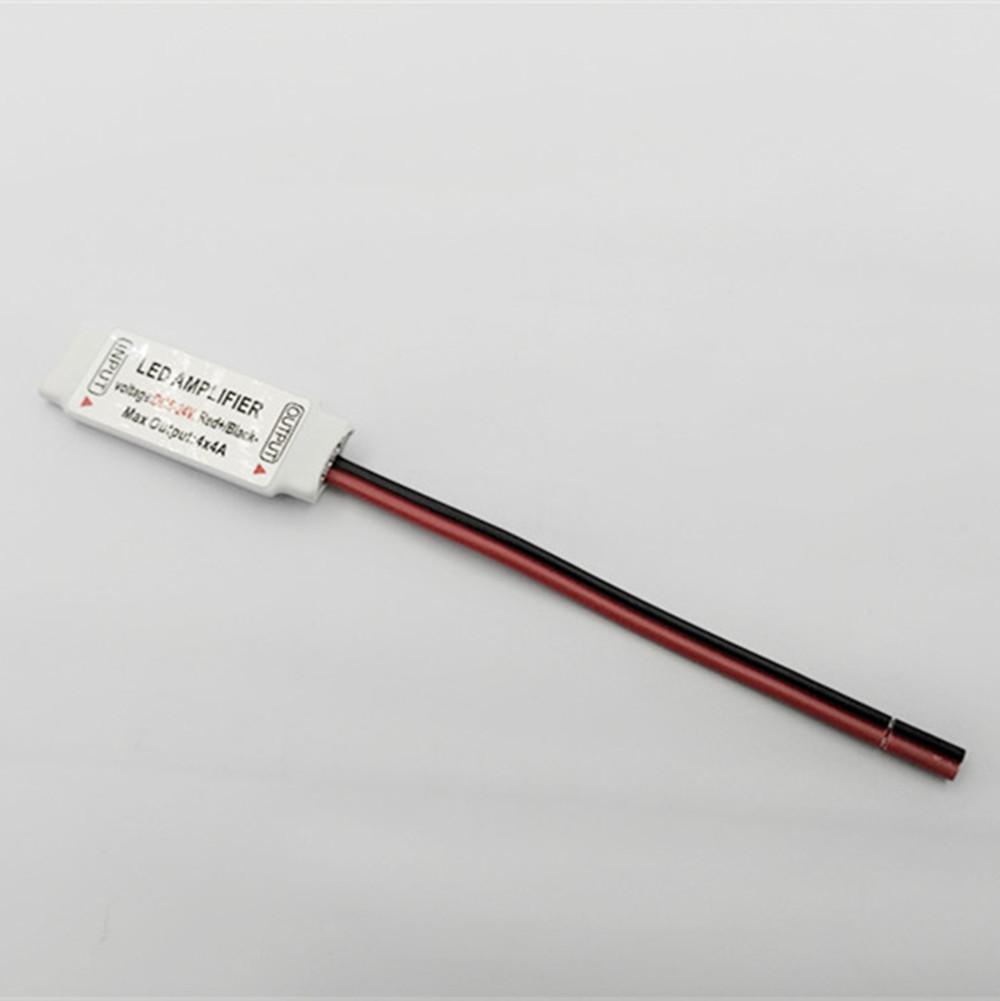

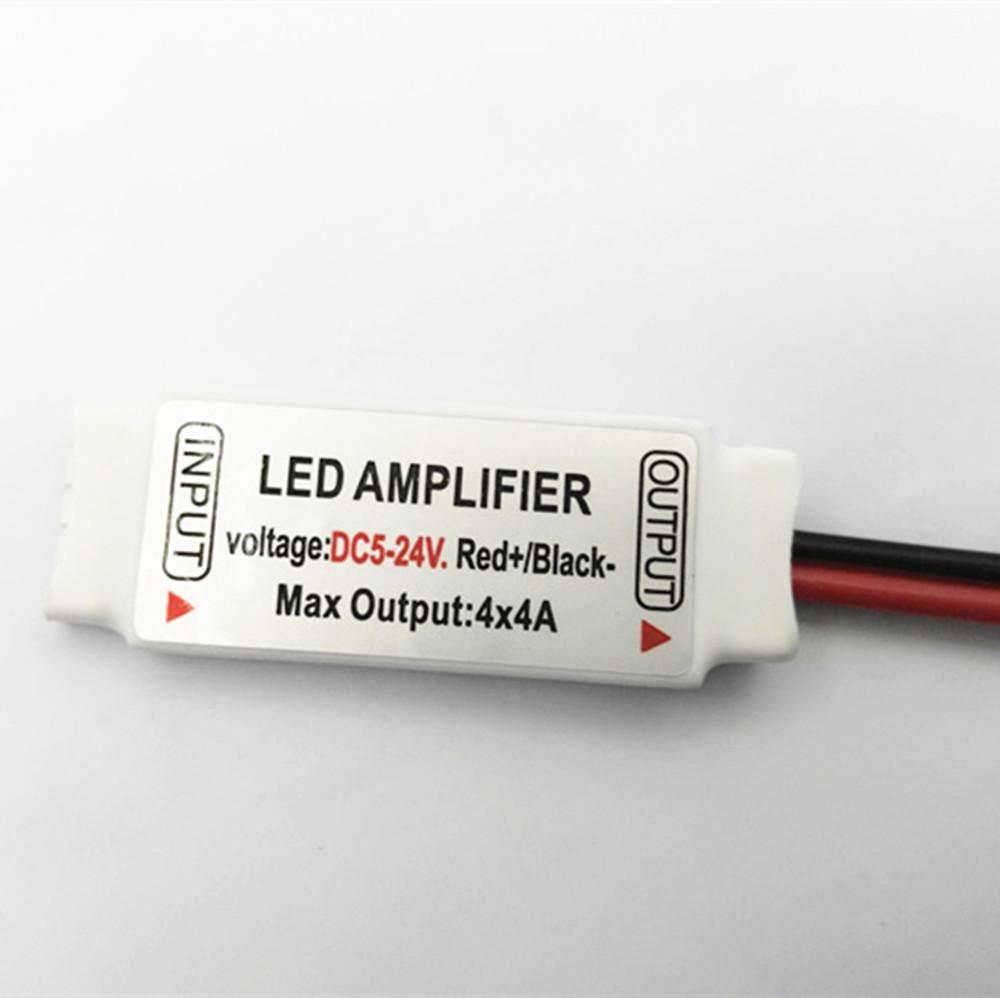

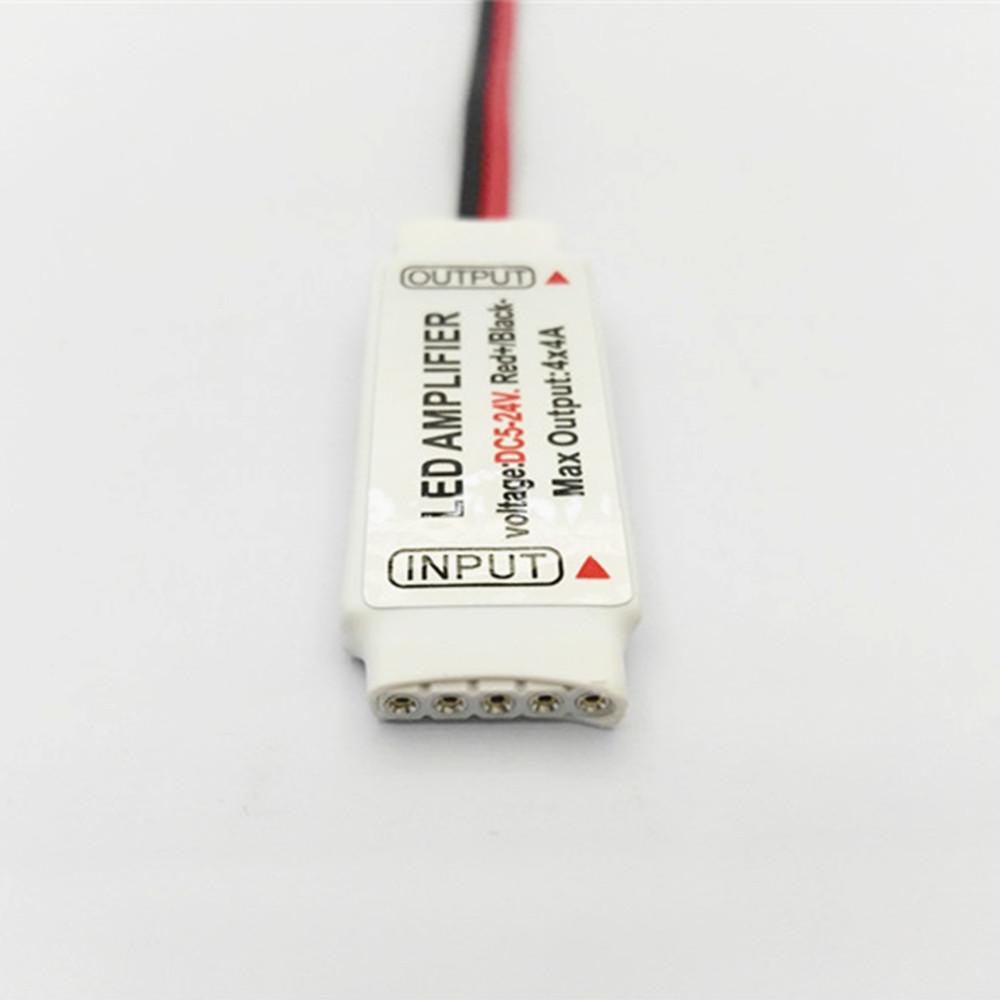

Mini RGBW Amplifier 4 Channel for 12V or 24V RGBW / RGBWW Color LED Flexible Strip Lights
This 4channel Amplifier is able to use for RGBW/RGBWW 12V/24VDC LED lights. With 6Amp/Channel, its max load is 24Amp. It's usually used with controller together, to enlarge the signal, to make one controller can control more LED Lights that over its rated load.
Specification
| Operating Voltage | DC5-24V |
| Product Size | L35*W10*H8 (mm) |
| Net Weight | 15g |
| Output Channel | 4 channel (R,G,B,W) |
| Connection Way | Common Anode |
| Output Current | 4Amp/Cannel |
| Output Wattage | 12V:<192W, 24V:<384W |
| Application | Enlarge signal, work for RGBW/RGBWW LED strips or bars |
Wiring
5Pin Input End for connect to RGBW Controller;
5Pin Output End for connect to RGBW LED Strip;
The Red/Black Wire for connect to Power Supply Postive(Red) and Negative(Black) Poles.
