Working Voltage:5~24V
Peak Output Power:144W@12V/288W@24V
Peak Output Current:12A
Remote controll:RF wireless card type remote controller
Remote Distance:>15 meters in open area
PWM control level:256-level
Wrong Polarity Protection:Yes
Working Temprature: -30~70℃

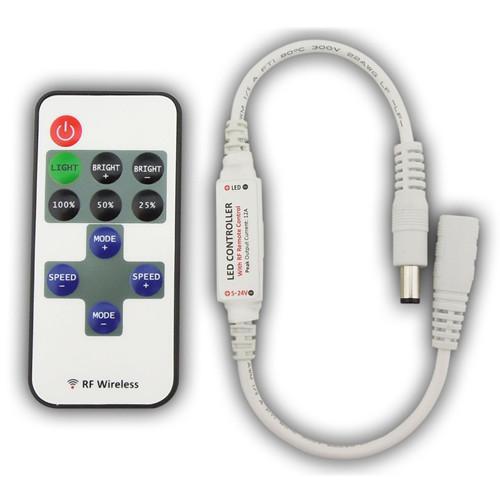

RF controller adopts the advanced micro control unit, with 433MHz wireless signal to do the controlling. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers’ needs, it can realize gradual change, fadein dimming, jumping change, strobe, quick flash and other kinds of model. It is easy to take, simple to use, etc.

Working Voltage:5~24V
Peak Output Power:144W@12V/288W@24V
Peak Output Current:12A
Remote controll:RF wireless card type remote controller
Remote Controll Frequency:433.92MHz
Remote controll Battery:CR2025 cell battery
Remote Distance:>15 meters in open area
Remote Controller matching mode:1 to 1 match for remote controller & main unit.
PWM control level:256-level
Wrong Polarity Protection:Yes
Working Temprature: -30~70℃
Components & PCB:SMD parts / Double side FR-4 pcb

Dynamic Mode:7 modes
Dynamic Speed Level:10 levels
Color Brightness level:10 levels
On/Off Operation:Yes
Auto Recall Function:Yes
Power Connector:Red / Black cable
LED Connector:Red / Black cable

Application:
